Safety
| Automatic Stuf-Off | No |
| Overheat Safety System | No |
| Residual Heat Indicators | NA |
| Child lock | No |
| Anti-over flow | No |
Hob Features
| Hob Type | Gas |
| Type of Pan Support | - |
| Ignition | Integrated Ignition |
| Auto Ignition | yes |
| Flame safety Device | yes |
| Fuel | Gas |
| Adjustable Flame settings | Yes |
| Type | Gas Burner |
| Cast Iron Pan Supports | Yes |
General Features
| Type | Built-in Gas Hob |
Burners/Heating zones
| No. Of Burners/Heating zones | 3 Gas + 1 Wok |
| Front left (kW) | 5 |
| Rear left (kW) | 1.75 |
| Front right (kW) | 1 |
| Rear right (kW) | 1.75 |
| Central (kW) | NA |
| Number of Cooking Levels | NA |
Hob Controls
| Control Type | Knob Control |
| Timer | NA |
| Location | Front control |
| Type | Gas |
| Knob Type | BYK2 |
Dimensions & Weights
| Product Height (mm) | 46 |
| Product width (mm) | 580 |
| Product depth (mm) | 510 |
| Carton height (mm) | 180 |
| Carton width (mm) | 670 |
| Carton depth (mm) | 610 |
| Net Weight (kg) | 10.800 kilograms |
| Gross Weight (kg) | 11.900 kilograms |
Installation
| Worktop Cut Out (HxWxD) (mm) | hX560X490 |
| Easy Installation | No |
| Worktop cut out W (mm) | 560 |
| Worktop cut out D (mm) | 490 |
Consumption Values & Other Technical Specification
| CE Approved / Requested Standards | CE; UKCA |
| PR EN 30-1-1 | Yes |
| CE Approved | Yes |
Model Codes

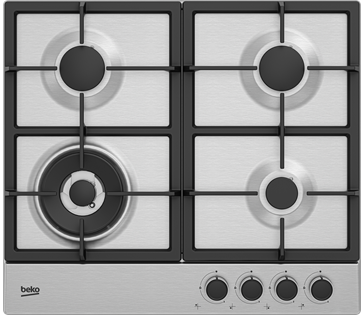

| HIAW164225SX | EAN:8690842718335 | |

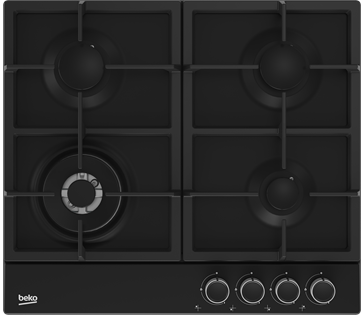

| HIAW164225SB | EAN:8690842718380 |
